Moisture measured 400 times per second

The ability of water to conduct electricity is exploited by Electrolux-Wascator in its new generation of tumble dryers. This technical approach is reported to provide more energy-efficient drying, reduced wear in washed garments and less need for monitoring.

In the company's new series of tumble dryers it is possible to choose machines with "Residual Moisture Control" (RMC) as an optional feature. This involves the measurement of the moisture level in the laundry itself and not that of the vented air, as is frequently standard today.

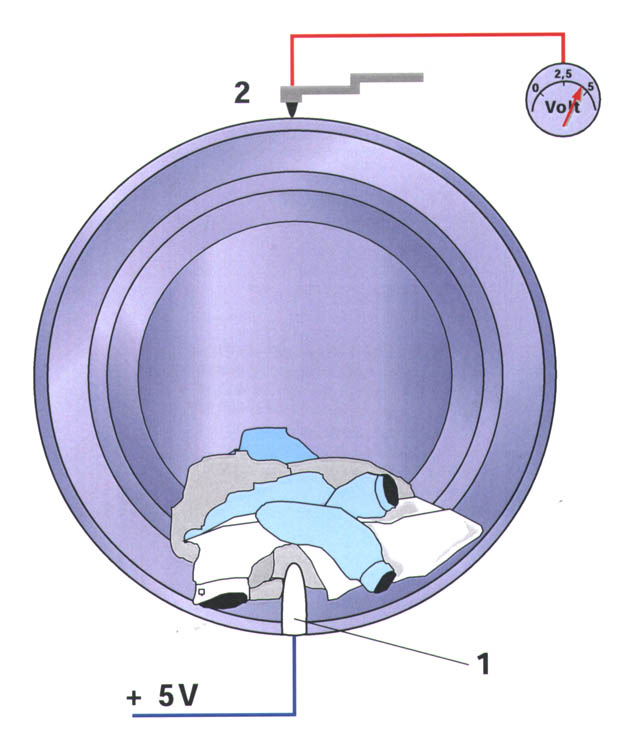

During the drying process a weak current is passed through the wet laundry to a receiver which measures the moisture at a rate of 400 times per second. As the laundry dries, its ability to conduct current decreases and the tumbler stops when the laundry is dry. If a particular level of moisture is required before subsequent finishing of the laundry, this can be programmed in via the control panel.
This technical solution is intended for Electrolux-Wascator's tumble dryers aimed at industrial and commercial laundries.
The requirements in large laundries for ergonomically correct working positions have also influenced the design of the doors which can be opened up to 180°.
To meet demands of the international market, the entire design of the tumbler has been simplified to facilitate servicing and maintenance. For similar reasons it has been adapted to work with different energy systems and can run on electricity, gas or steam.

For further information contact;
AUSTRALIA
Electrolux Laundry System, D Wilson
123 Lewis Toad, Wantirna South
Victoria 3152, Australia
Tel 03 988 71406; Fax 03 988 71710

BRAZIL
Electrolux Do Brazil S.A., Nilson Pacheco
Commercial Appliances Div.
Avda. Indianopolis 2272, Planato
CEP 04062-002, Sao Paolo-SP, Brazil
Tel.: 011 55894433; Fax: 011 55813278

EQUADOR
Electrolux C. A., Benjamin Chavez
Av. 10 de Agosto 8131 y Capitan
Rafael Ramos
Quito, Ecuador
Tel: 2400148; Fax: 2412120

FRANCE
Electrolux Blanchisserie SNC, J Mesureux
10, Rue du Colisée, F-75008 Paris
Tel.: 0142256390; Fax: 0145633805

GERMANY
Electrolux Wäschereimasch. GmbH, Herrn B. Kampmann
Bismarckstrasse 96 (Industriegebiet)
DE-72072 Tübingen
Tel: 0707-193000; Fax: 0707-1930019

GREECE
Domestica S A, Mr Ph. Nicolaides
65 Stournara Str.
GR-10432 ATHENS
Tel: 01-5243 014, 01-5243 015; Fax: 01-5229 158

ITALY
Electrolux-Wascator SPA, Pier Cereja
PO BOX 20, Strada Fornacino 152, I-100040 Leinì (TO)
Tel: 011 9969494; Fax:011 9968922

JAPAN
Electrolux (Japan) Ltd
Wascator Division, Y Kasai
7-28 Hiroshiba-Cho Suita-City
Osaka 564, Japan
Tel 06-337 6050; Fax 06-337 6052

NEW ZEALAND
Electrolux Laundry System, A Moore
P O Box 58-780, Greenmount
Auckland, New Zealand
Tel 09-274 9324; Fax 09-2745478

PERU
Electrolux del Peru S.A., Hugo Leon
Av. Tingo Maria 353 Brena
Lima, Peru
Tel: 14453840; Fax: 14446698

SINGAPORE
Electrolux S E A Pte, Mr Hong Boo Soon
136 Joo Seng Road, Singapore 368360
Tel: 285 8100; Fax: 382 9536

UK
Electrolux Laundry Systems, David Hayes
Humphrys Road, Dunstable
Bedfordshire LU5 4TP
Tel 15825 93273; Fax 15825 88871

WORLDWIDE
Electrolux-Wascator AB, Stefan Rydergren
SE-341 80 Ljungby, Sweden
Tel +46 372 66100, Fax +46 372 13390
Email: info@wascator.electrolux.se
Internet: www.electrolux.se/wascator
