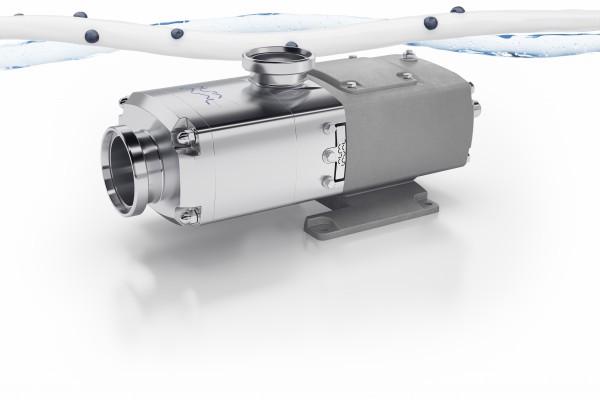

/ins Designed for handling fluids which are sensitive, abrasive, and either high or low viscosity, the Alfa Laval Twin Screw Pump is ideal for use in hygienic applications in the dairy, food and beverage, and personal care industries.

"The Twin Screw Pump is the ideal choice for both high and low viscosity liquids, all pumped perfectly with complete reliability," says John Walker, Pump Portfolio Manager.

 Additional benefits of the Alfa Laval Twin Screw Pump are that it is quiet and virtually pulse-free, as well as being smooth and gentle during operation. These characteristics make the pump an excellent choice for handling sensitive products.

 Built on a robust, reliable platform that meets stringent hygienic standards, the pump is capable of handling both product transfer and Cleaning-in-Place (CIP). Its low pulsation characteristics and excellent solids handling capabilities reduce the risk of product damage, thereby improving product quality. Maintenance is simplified and process uptime increased.



Process flexibility

Two-in-one operation provides easy handling of process media of varying viscosities as well as CIP fluids. This simplifies piping and pump control, cutting costs and minimizing contamination risks. Superior suction performance with excellent lift capability and low NPSHR provides installation flexibility and increases product recovery.



Service and reliability

 Quick, easy seal replacement with the pump in place is made possible, thanks to a cartridge seal with a truly front-loading, self-setting design. This maximizes process uptime and minimizes maintenance costs. An optional seal service kit program adds maintenance flexibility and cuts operating costs.



Operational safety

 The Alfa Laval Twin Screw Pump features a clean, external stainless steel finish with profiled elastomers and mechanical seals fully surrounded by the product. Designed for maximum cleanability using FDA-conforming materials, the pump is both EHEDG- and 3-A certified. An optional ATEX version enables use in hazardous zones.



 About Alfa Laval



Alfa Laval is a leading global provider of specialized products and engineering solutions based on its key technologies of heat transfer, separation and fluid handling.

 The company’s equipment, systems and services are dedicated to assisting customers in optimizing the performance of their processes. The solutions help them to heat, cool, separate and transport products in industries that produce food and beverages, chemicals and petrochemicals, pharmaceuticals, starch, sugar and ethanol.

 Alfa Laval’s products are also used in power plants, aboard ships, oil and gas exploration, in the mechanical engineering industry, in the mining industry and for wastewater treatment, as well as for comfort climate and refrigeration applications.
