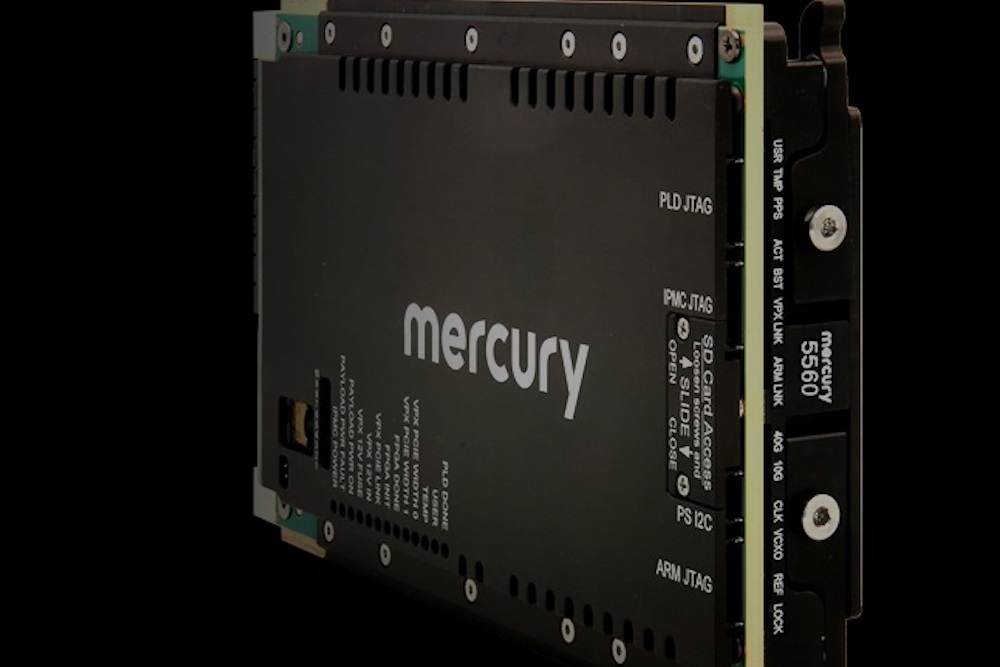

Keep up with the latest converter technology at the edge. COTS 3U VPX SOSA aligned coprocessor board fueled by AMD® Versal® HBM.

An innovative combination of HBM (high-bandwidth memory), equally substantial DSP processing engines, high-speed 100 GigE interfaces and the Navigator® design suite means massive data throughput critical for applications in adaptable artificial intelligence and electronic warfare where low latency is required for real-time decision-making.

FEATURES

• AMD Versal HBM ACAP
• 10 GigE Interface and 40 GigE Interface
• Optional VITA 67.3C optical interface for backplane gigabit serial communication
• Up to 4, 100 GigE UDP interfaces
• Compatible with several VITA standards including: VITA 46, VITA 48.11, VITA 67.3C and VITA 65 (OpenVPX™ System Specification)
• Ruggedized and conduction-cooled
• Navigator Design Suite for software and custom IP development
• Expansion mezzanine interface for data converter or digital I/O boards

SPECIFICATIONS

Adaptive Compute AccelerationPlatform (ACAP)

• Type: AMD Versal HBM VH1542
• Adaptable Engines: 3,837k Logic Cells
• Intelligent Engines: 7,392 DSP slices
• Scalar Engines: Dual-core ARM Cortex-A72, Dual-core ARM Cortex-R5F
• HBM DRAM: 16 GBytes
• Total Block RAM: 89 Mb
• UltraRAM: 366 Mb

ACAP IO

• Interface: GPIO, 4 pairs, LVDS
• Interface: 1, 10, 40 GigE
• Interface: PCI-Express Gen 1, 2, 3, or 4: x4
• Interface: Optical, 16 full duplex lanes,26 Gb/sec

Memory

• ECCM: 64 GBytes
• SDRAM: DDR4, 8 GBytes
• Configuration FLASH: 2x 1 Gbit QSPI

Environmental

• Operating Temp: 0° to 70° C
• Storage Temp: -50° to 100° C
• Relative Humidity: 0 to 95%, non-condensing

OpenVPX Compatibility

• The 5560 is compatible with the VITA 65 OpenVPX Specification:SLT3-PAY-1F1U1S1S1U2F1H-14.6.11-12 module profile.
